The Influence of Different Dental Implant Abutment Materials on the Color of Lithium Disilicate Crowns: A Combined In Vitro and Clinical Study

1. INTRODUCTION

Dental implants have become a widely adopted solution for the replacement of missing teeth, with success rates reaching up to 97% within the first ten years and 75% over the following decade [1]. One of the main components of a dental implant is the abutment, which serves as the intermediate structure between the implant and the crown, providing stability and support for the prosthesis [2]. Commonly used abutment materials include titanium, cobalt-chromium, zirconia, and gold [3].

In recent years, polyetheretherketone (PEEK) has gained significant attention as a promising alternative to conventional titanium (Ti) in the fabrication of implant abutments. Unlike titanium, PEEK exhibits favorable esthetic properties due to its tooth-like color and translucency, which help prevent dark shading of peri-implant soft tissues, which is a common concern in the anterior aesthetic zone. Moreover, PEEK demonstrates excellent biocompatibility, with a lower risk of allergic reactions compared to metal alloys, making it suitable for patients with hypersensitivity concerns [4,5]. Recent studies have also highlighted the biomechanical advantages of PEEK abutments, including a modulus of elasticity closer to that of natural bone, which may help reduce stress shielding and improve load distribution at the implant–bone interface [6, 7]. Furthermore, advancements in digital dentistry have facilitated the precise CAD/CAM fabrication of custom PEEK abutments, enhancing both clinical efficiency and prosthetic fit [8,9]. The ongoing development of PEEK-based composites, such as carbon fiber-reinforced PEEK, continues to expand its potential as a durable and clinically reliable abutment material for long-term provisional and definitive restorations.

Titanium and cobalt-chromium abutments are known for their high strength; however, they may cause grayish discoloration beneath lithium disilicate crowns or the peri-implant mucosa, which compromises esthetics. To overcome this issue, zirconia abutments were developed, offering color compatibility closer to natural teeth.[10] Nevertheless, monolithic zirconia abutments are suscep-tible to fracture at the implant–abutment connection, particularly in scenarios of off-axis loading or in small-diameter implants [11]. This brittleness is a concern for long-term reliability. To overcome this limitation while preserving esthetics, two-piece hybrid abutments were developed, consisting of a zirconia superstructure cemented or bonded onto a titanium base. This design leverages the superior fatigue resistance and ductility of titanium at the critical connection interface while utilizing zirconia for its optimal soft-tissue response and color properties in the supragingival region [12].

Titanium bases provide optimal strength, biocompatibility, and compatibility with CAD/CAM technology, allowing efficiency in fabrication [13]. A key advantage of titanium bases is their retrievability: the crown and abutment can be removed together, similar to custom abutments or screw-retained systems. Additionally, crowns may be bonded to the abutment extraorally, reducing the risk of peri-implant inflammation from excess cement, after which the abutment is screw-retained into the implant [14].

Because of zirconia’s esthetics, fracture resistance, and biocompatibility, it has been widely used in implant abutments [15]. CAD/CAM-fabricated zirconia abutments are among the most widely applied technologies worldwide, particularly for anterior esthetic restorations [16]. Zirconia abutments may be fabricated with or without a metallic base; however, studies have shown that incorporating a titanium base enhances the fracture resistance of zirconia abutments due to zirconia’s inherent brittleness [17].

Zirconia demonstrates mechanical properties comparable to stainless steel, with tensile strength ranging between 900–1200 MPa, compressive strength up to 2000 MPa, and flexural strength up to 1132 MPa, in addition to excellent biocompatibility and high esthetics [18]. Studies have confirmed high survival rates of ceramic crowns supported by zirconia abutments on implants [19]. Research has also indicated that tetragonal zirconia implants exhibit superior physical properties compared to titanium implants [1].

Most zirconia implants have been produced as one-piece designs. However, this design presents significant limitations: the surgical phase becomes more demanding to ensure alignment between implant placement and the final prosthesis, angulated abutments are unavailable, and the implants are directly exposed to functional forces from the tongue or mastication. Furthermore, there are no long-term clinical studies on this type of implant, and reported failure rates are higher compared to two-piece titanium implant systems, largely due to screw-retention challenges [20].

Restoring missing anterior teeth with prostheses that meet high biological, mechanical, and esthetic demands is of utmost importance [21]. For this reason, alternatives to titanium abutments have been sought to address grayish discoloration of peri-implant mucosa or beneath all-ceramic crowns. Zirconia has emerged as the preferred material due to its superior mechanical properties compared to other ceramics [12]. Current zirconia abutment options include prefabricated types or CAD/CAM-customized abutments connected to the implant via a titanium base. Mechanically, there is no significant difference between prefabricated and CAD/CAM abutments, although CAD/CAM abutments offer greater customization and angulation [22].

Studies have demonstrated that zirconia abutments with titanium bases are stronger than full-zirconia abutments [16]. A conical design of the zirconia cap on a titanium base with a semi-shoulder configuration has been shown to provide the most stable interlocking between components [23].

It is important to note that luting cements used for conventional tooth-supported fixed restorations do not necessarily exhibit the same behavior in implant-supported restorations [24]. For example, zinc oxide eugenol cement, commonly used as a temporary luting agent on natural abutments, may function as a temporary or semi-permanent cement for implant-supported crowns [25]. Temporary cements are characterized by high solubility and low tensile strength, which may be advantageous in implant restorations by facilitating retrievability in cases such as peri-implantitis. Examples include zinc oxide eugenol and zinc oxide non-eugenol cements [26]. However, prosthesis decementation rates have been reported as high as 17.6% with temporary cements [27].

Semi-permanent cements, such as zinc phosphate and glass ionomer, provide adequate retention while reducing the risk of frequent debonding [28]. Both also allow retrievability when necessary [29]. Studies have shown high retention rates and negligible decementation with these cements in implant restorations [30].

In certain cases, clinicians may prefer permanent cementation of implant-supported restorations. Permanent cements must possess properties that prevent future complications affecting peri-implant tissues or the restoration itself. Resin cements and resin-modified glass ionomer cements are the most commonly used permanent agents [31]. However, resin cements contain tertiary amines, which have been associated with color instability [32]. To mitigate excess cement complications, extraoral bonding of perforated crowns to the abutment, followed by screw-retained fixation, has been advocated as a successful method [33].

The quantification of color change is central to evaluating esthetic outcomes and is typically measured using the CIELAB color system and expressed as ΔE (Delta E). The clinical relevance of ΔE values is interpreted through perceptibility and acceptability thresholds. A color change with a ΔE value < 1 is generally considered imperceptible to the human eye. Values between 1.0 and 3.5 are perceptible but may be clinically acceptable, whereas a ΔE > 3.5 is typically considered visually unacceptable. It is important to note that these thresholds can be influenced by the duration of observation and surrounding environmental conditions; however, a change exceeding the 3.5 threshold is immediately noticeable in a clinical setting and often leads to patient dissatisfaction [34].

Furthermore, the duration of exposure to the restoration can affect the observer's ability to detect color differences. Short-term observations during a clinical visit may mask subtle color mismatches that become more apparent over time, especially under varying lighting conditions or as the patient adapts to the prosthesis. Therefore, while immediate ΔE measurements provide valuable initial data, long-term follow-up is essential to fully assess the aesthetic stability and patient acceptance of implant-supported restorations.

This study aims to evaluate the color change of lithium disilicate crowns placed on different implant abutments and to identify the optimal abutment–crown combination to achieve the best esthetic outcome in anterior restorations.

2. MATERIALS AND METHODS

To address the research purpose, the investigators designed and implemented a study comprising both in vitro and clinical components. The study was conducted in the Department of Fixed Prosthodontics, Faculty of Dentistry, Tishreen University, between 2019 and 2022 in accordance with the Declaration of Helsinki. Ethical approval was obtained from Tishreen University (Approval No. 486, Session 8, February 4th, 2019).

2.1. In Vitro Sample

A statistical power analysis using the G*Power program indicated that the required sample size was 10 crowns per tested variable, totaling 30 lithium disilicate crowns. The error value was 0.05, the effect size adopted for this type of study was 0.5, and the statistical power was 0.17, which is close to the reference value of 0.2 commonly used in such tests.

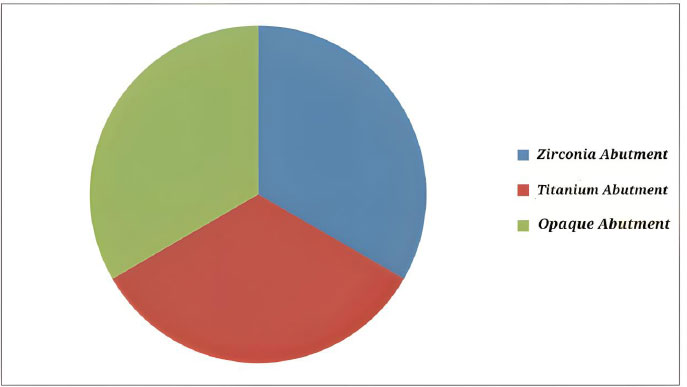

Ten crowns were allocated to each abutment type. Table 1 provides a description of the in vitro sample, and (Fig. 1) illustrates the distribution of study groups according to abutment type.

Table 1.

Study Group	Number Of Crowns	Percentage
zirconia abutments (de zer)	10	33.3%
titanium abutments (de metal)	10	33.3%
opaque-coated titanium abutments (de opa)	10	33.3%
total	30	100%

The in vitro sample consisted of 30 lithium disilicate crowns (IPS e.max CAD), numbered 1–30, designed as standardized central incisors with the following dimensions: 8 mm length, 6 mm width at the contact points, 5 mm width at the cervical region, 1.37 mm thickness at the incisal and middle thirds, and 0.7 mm thickness at the cervical third.

Additionally, 30 titanium base abutments (Bio3, Germany) were used. Ten zirconia copings with a thickness of 0.30 mm were fabricated to fit over the titanium bases.

2.1.1. Materials and Devices for the In Vitro Study

• 30 lithium disilicate crowns (IPS e.max CAD, shade A1).
• IPS e.max CAD discs (shade A1, Roseta).
• 30 titanium bases (Bio3, Germany).
• 30 implant analogs (Bio3).
• 10 zirconia copings (shade A1, Semphony) for titanium bases.
• Opaque material (shade A1, Initial, Germany).
• Pure glycerin.

Devices:

• Easy Shade (VITA, Germany) for shade measurement.
• CAD/CAM milling unit (ARUM Dental) for crown fabrication.

2.1.2. Experimental Groups and Procedure

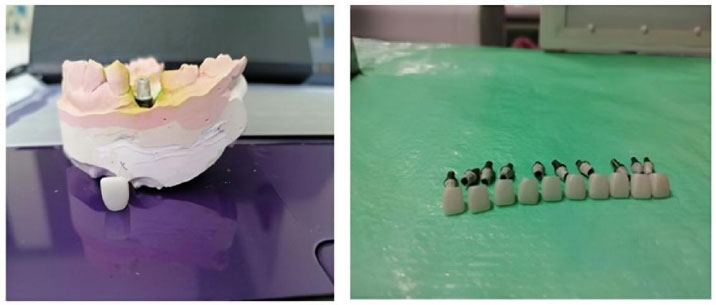

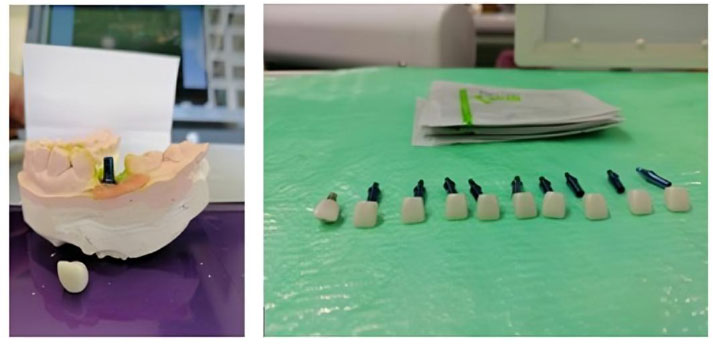

• Group 1 (de metal): 10 lithium disilicate crowns and 10 titanium abutments. Abutments were fixed onto implant analogs in a gypsum model, crowns were seated with pure glycerin, and after 24 hours, color change values were recorded using the Easy Shade device (Fig. 2).

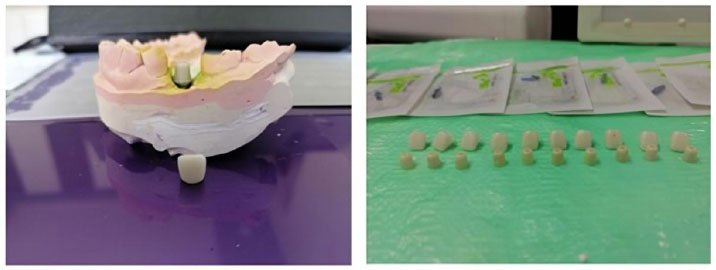

• Group 2 (de zer): 10 lithium disilicate crowns and 10 zirconia abutments (titanium base + zirconia coping). Abutments were assembled without bonding, crowns were placed with pure glycerin, and color measurements were taken after 24 hours (Fig. 3).



• Group 3 (de opq): 10 lithium disilicate crowns and 10 titanium abutments coated with opaque. Crowns were seated on the opaque-coated abutments with glycerin, and color measurements were taken after 24 hours (Fig. 4).

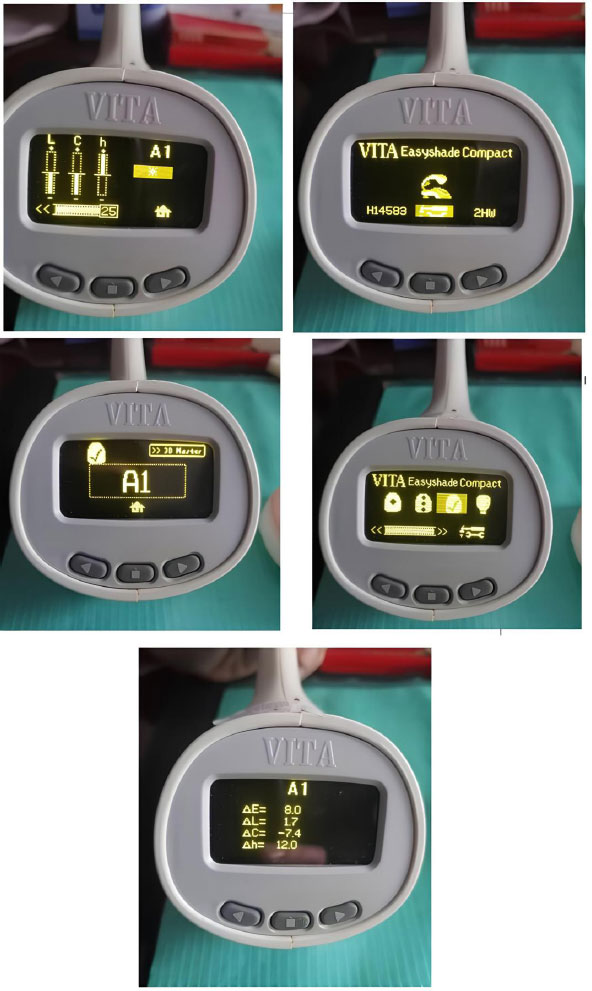

2.1.3. Easy Shade Protocol

(1) Calibrate the device.

(2) Activate the device.

(3) Select “Check restoration shade.”

(4) Select crown shade (A1 in this study).

(5) Record color change (ΔE) (Fig. 5).

2.2. Clinical Study

2.2.1. Clinical Sample

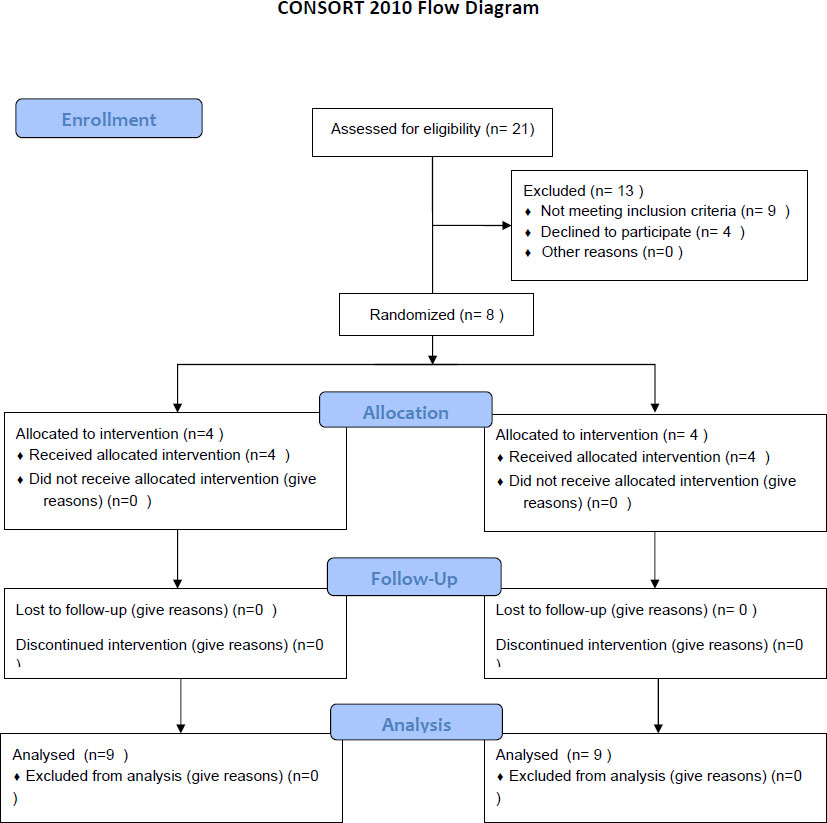

The clinical sample included 8 titanium implants (Bio3), distributed among 4 patients aged 20–55 years (Fig. 6) Table 2 shows patient distribution by gender.

Table 2.

Gender	Number of Patients	Percentage
Male	2	50%
Female	2	50%

A total of 16 lithium disilicate crowns were placed on the implants, equally divided between zirconia abutments and opaque-coated titanium abutments (Table 3).

Table 3.

Study Group	Number of Crowns	Percentage
Zirconia abutments	8	50%
Opaque-coated titanium abutments	8	50%
Total	16	100%

2.2.1.1. Inclusion Criteria

• Patient age between 20–55 years.
• No systemic diseases contraindicate implant surgery (cardiac, endocrine, hematologic, immunologic, or acute infections).
• Suitable local indication for implant placement (loss of maxillary central incisors adjacent or contralateral).
• Patient consent and commitment to follow-up.

2.2.1.2. Exclusion Criteria

• Absence of the required edentulous site.
• Poor general health.
• Inadequate bone volume.
• Insufficient occlusal space.
• Oral trauma or infections.
• Poor oral hygiene or smoking.

2.4. Surgical Procedure Planning

The surgical procedures were planned and carried out as follows:

(1) Patients were anesthetized locally using the appropriate anesthetic technique for each case.

(2) A crestal incision was made at the edentulous ridge, with mesial and distal releasing incisions to elevate the flap.

(3) A full-thickness mucoperiosteal flap was raised at the implant site.

(4) Using the manufacturer-supplied implant motor and the sequential drills provided in the surgical kit, osteotomies were prepared to the diameter of each planned implant.

(5) The implant fixtures were inserted in their positions with the appropriate torque (Figs. 7 and 8).

(6) Suturing was performed according to the specific needs of each case.

2.5. Final Prosthetic Protocol

(1) Gingival formers were placed for 7–10 days (Fig. 9).

(2) Transfer copings were placed, and impressions were taken using the open-tray technique.

(3) Impressions were poured and sent to the dental laboratory.

(4) Zirconia abutments were cemented to titanium bases using glass ionomer cement.

(5) Titanium bases were opaqued in the laboratory using an opaquer.

(6) Abutments were fixed onto the implants (Fig. 10).

(7) Lithium disilicate crowns were then cemented onto the abutments using a dual-cure resin cement (Fig. 11).

3. RESULTS

3.1. Laboratory Results

3.1.1. Laboratory Findings

Table 4 presents the color difference values (ΔE) of the first group (lithium disilicate crowns on titanium abutments), the second group (lithium disilicate crowns on zirconia abutments), and the third group (lithium disilicate crowns on opaqued titanium abutments).

Table 4.

Group 1	Crown	1	2	3	4	5	6	7	8	9	10
	∆e	9.8	9.7	9.6	9.8	9.7	9.9	9.8	9.7	9.8	9.9
Group 2	crown	1	2	3	4	5	6	7	8	9	10
	∆e	6.3	5.8	6.4	6.0	6.3	6.1	6.3	6.2	6.3	5.9
Group 3	crown	1	2	3	4	5	6	7	8	9	10
	∆e	8.1	8.0	8.1	7.8	8.0	7.9	7.7	7.8	7.8	7.4

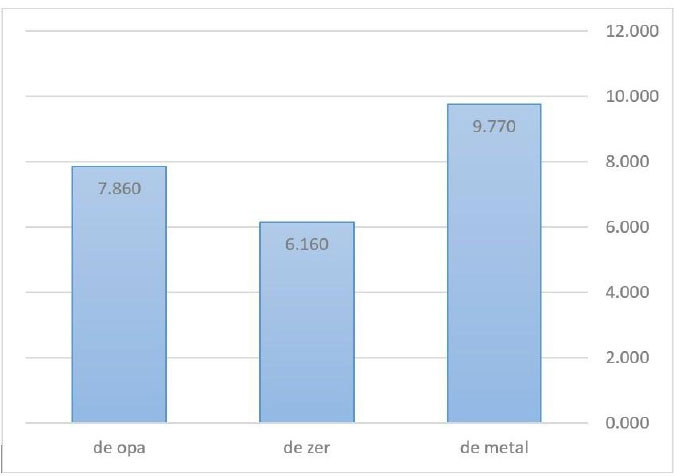

Using the Easy Shade device, the mean ∆E values (Fig. 12) for each group were:

• Group 1 (Ti abutments): ∆E = 9.7
• Group 2 (Zr abutments): ∆E = 6.1
• Group 3 (Opaqued Ti abutments): ∆E = 7.8 (Table 5)

The difference between Group 1 and Group 2 was 3.6, and between Group 1 and Group 3 was 1.9.

Table 5.

Group	N	Mean	Sd	Min	Max
ti (de metal)	10	9.770	0.095	9.60	9.90
zr (de zer)	10	6.160	0.201	5.80	6.40
opaqued ti (de opa)	10	7.860	0.212	7.40	8.10

Thus, titanium abutments showed clinically unacceptable color changes compared to zirconia abutments, which demonstrated more natural color values (difference > 3.5). Titanium abutments opaqued with opaquer were clinically acceptable compared to standard titanium abutments (difference < 3.5).

3.1.2. Laboratory Statistics

The Kolmogorov-Smirnov normality test (Table 6) showed p-values > 0.05, indicating non-normality. Therefore, a non-parametric Kruskal-Wallis Test was performed.

Table 6.

One-Sample Kolmogorov-Smirnov Test
Shade	Index	Group
10	N	de mtal
0.224	Test Statistic
0.168	Asymp. Sig. (2-tailed)
10	N	de zer
0.257	Test Statistic
0.06	Asymp. Sig. (2-tailed)
10	N	de opa
0.189	Test Statistic
0.2	Asymp. Sig. (2-tailed)

• Kruskal-Wallis H = 25.986, df = 2, p = 0.000.

This confirmed significant differences between the groups (Table 7).

Table 7.

Test Statistics
Shade
25.986	Kruskal-Wallis H
2	Df
0.000	Asymp. Sig.

Pairwise comparisons with the LSD test (Table 8) revealed significant differences between all groups (p < 0.05).

Table 8.

Sig.	Mean Difference (I-J)	(J) Group	(I) Group
0.000	3.610*	de zer	de mtal
0.000	1.910*	de opa
0.000	-1.700*	de opa	de zer

Table 7 presents descriptive statistics of ∆E values across the three groups.

3.2. Clinical Results Clinical Sample Size Calculation

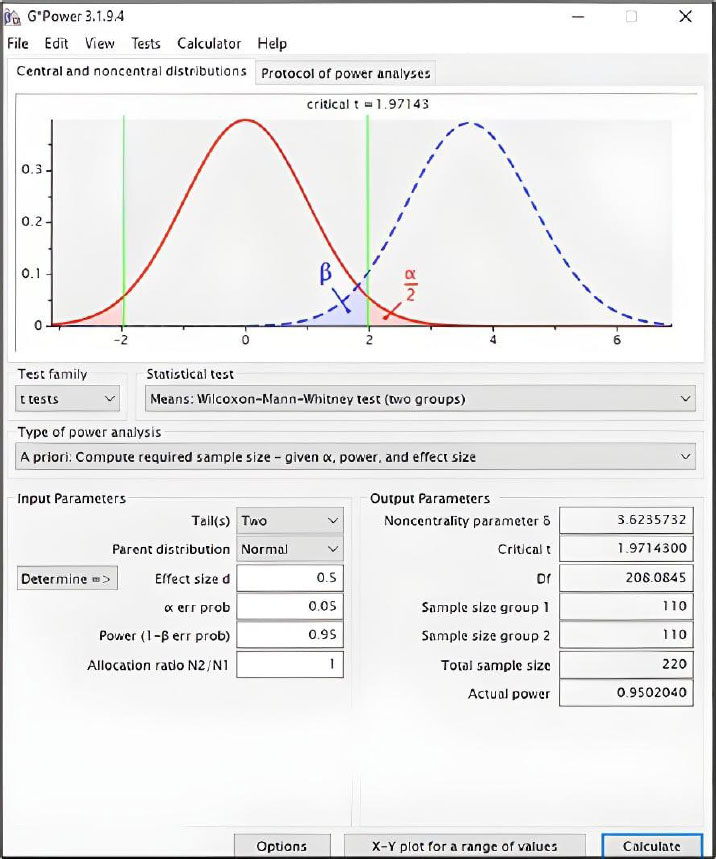

Sample size was estimated using G*Power 3.1.9.4. With an effect size of 0.5, an error of 0.05, and a power of 0.95, the sample size was deemed adequate (Fig. 13).

3.2.1. Clinical Findings

Tables 9 and 10 shows ∆E values for lithium disilicate crowns on zirconia abutments (n=8) and lithium disilicate crowns on opaqued titanium abutments (n=8).

Table 9.

Crown	1	2	3	4	5	6	7	8
∆e	5.0	5.3	4.9	5.1	4.7	5.1	5.3	4.9

Table 10.

Crown	1	2	3	4	5	6	7	8
∆e	6.9	7.1	6.8	6.9	7.2	7.1	7.3	7.0

3.2.2. Clinical Statistics

The comparative statistics between the two clinical groups show a statistically significant difference (p < 0.05) (Table 11).

Table 11.

Froup	N	Mean ∆e	Sd	t	p-value
zirconia abutments	8	5.04	0.206	-21.22	0.000
opaqued ti abutments	8	7.04	0.166	-	-

3.2.3. Patient Satisfaction

A patient questionnaire assessed satisfaction with crown esthetics (shade and appearance):

• Patient 1: No difference between the two abutment types.
• Patient 2: No difference.
• Patient 3: Crowns on zirconia abutments looked more esthetic.
• Patient 4: No difference.

In summary, most patients reported no perceptible esthetic difference between the two types of abutments.

4. DISCUSSION

5. STUDY LIMITATIONS

This study has several limitations that should be acknowledged. The clinical evaluation was conducted with a small sample size and lacked long-term follow-up, limiting the generalizability of the findings and the assessment of color stability over time. Furthermore, the in vitro conditions, while controlled, utilized glycerin as a simulated luting agent, which does not fully replicate the optical properties of clinical resin cements. The esthetic outcome for the opaque-coated group was also contingent upon a manual application technique, introducing a potential variable dependent on technical skill. Finally, the study was restricted to three specific abutment types and did not evaluate other available materials or designs.

CONCLUSION

This study demonstrates that the abutment substrate significantly influences the final color of lithium disilicate crowns in the esthetic zone. Under controlled in vitro conditions, conventional titanium abutments resulted in clinically unacceptable color changes (ΔE > 3.5), confirming their potential to compromise esthetics. Both zirconia abutments with a titanium base and opaque-coated titanium abutments served as effective alternatives, producing significantly lower and clinically acceptable ΔE values.

These laboratory findings were substantiated clinically, where no perceptible difference in color was reported by most patients between zirconia and opaque-coated titanium abutments, despite a statistically significant difference in colorimeter measurements. Therefore, from a purely esthetic standpoint, both options are valid for restoring anterior implants with lithium disilicate crowns.

The choice between them can be guided by non-esthetic considerations: zirconia abutments may be preferred for their inherent optical properties, while opaque-coated titanium abutments present a more cost-effective and technically straightforward solution. Based on these results, both are recommended over unmodified titanium abutments for superior esthetic outcomes. Future research should focus on the long-term color stability of these solutions and the impact of different clinical variables, such as luting cement shades and peri-implant soft tissue dynamics.
